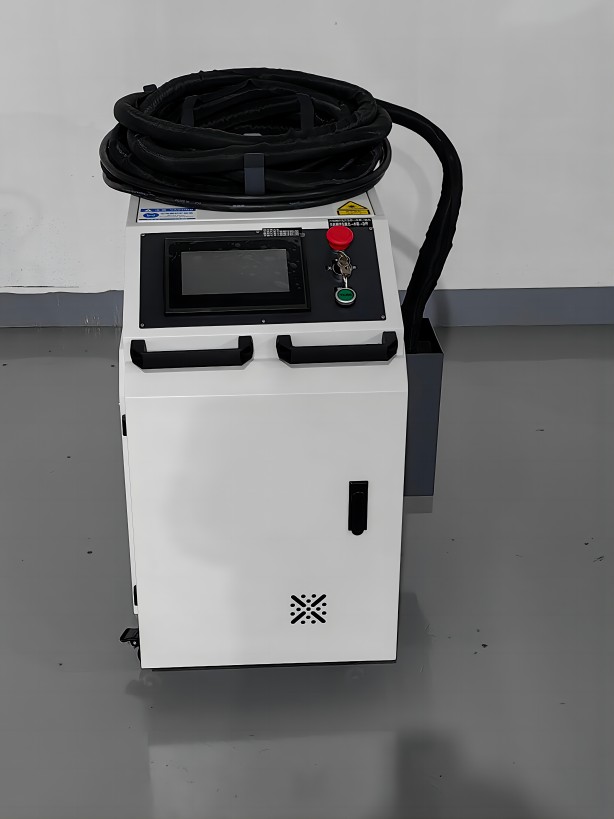

ZST Laser Rust Removal Machine
ZST Laser Rust Removal Machine
| Technical Specifications | |
| Average laser power | 1000/1500/2000/3000W |
| Supply voltage | 220V / 380V, 50/60 Hz AC |
| Total power consumption | 3.5–9 kW (incl. water chiller) |
| Operating temperature | 5℃～40℃ |
| Operating humidity | ≤80% |
| Power adjustment range（%） | 10–100% (continuously adjustable) |
| Repetition frequency（kHz） | 1–30 kHz (adjustable) |
| Fiber length | 10 m (extendable to 40 m) |
| Cooling method | Water cooling |
| Rust-removal width | 1–150 mm, continuously adjustable |
| Scanning frequency | ≥ 300 Hz (max) |
| Focal length（mm） | 300–500 mm (optional) |
| Depth of focus | Max 10 mm |
| Total weight | Approx. 160Kg~260Kg |
| Dimensions (excl. casters) | 1360 × 750 × 1130 mm (actual product prevails) |
| Gun-head weight | Approx. 1Kg |
| 20μm light-rust cleaning efficiency (m²/h) | 7-15(1000W) 12-20(1500W) 15-30(2000W) 20-40(3000W) |
